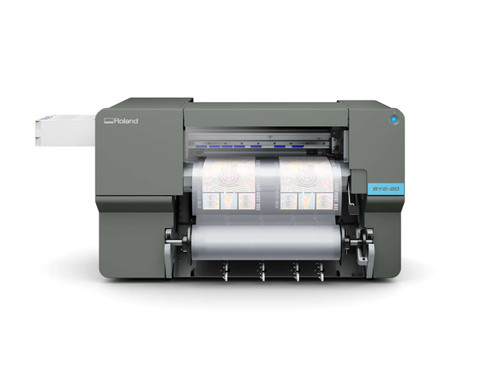

The BY2-20 boasts advanced features, qualities, and capabilities that make it superior to the previous-generation BY-20. With its increased reliability, low running costs, simple operation, and streamlined workflow from design to output, the new BY2-20 makes producing high-quality, durable DTF apparel and accessories quicker, easier, and more profitable than ever. In addition, the BY2-20 incorporates built-in cutting functionality for a wide variety of materials, meets world-class safety standards, and allows for sustainable production. It also offers users the additional benefits of included VersaWorks 7 RIP software and access to the Roland DG Connect platform.
Key Features
- Engineered to provide continuous printing and vibrant output – controlled ink delivery and stable printhead performance ensure dependable graphic results.
- Simplifies the DTF production process – from print-ready artwork creation and file setup to smooth, seamless printing operation.
- Small footprint, easy set-up, and simple, cost-efficient operation.
- Together with Roland DG inks, powder, and transfer film, offers users a complete DTF solution.
- Produces high-quality output with strong wash durability – essential for creating premium apparel.
- Specially formulated, low-cost S-PG2 inks available in 220 ml or 500 ml cartridges, plus dual white configuration for improved density and clarity over longer runs.
- Integrated cutting capabilities – one compact device supports DTF printing and standalone cut applications.
- Automated maintenance functions reduce downtime for uninterrupted production.
Ink & Accessories
S-PG2 220ml Cartridge (CMYK and Wh x 2) OR S-PG2 500ml Cartridge (CMYK and Wh x 2)
S-F164 Film 20in x 164ft
BY2-20 Specifications
• Media width: 5.91 to 20.27 in. (150 to 515 mm)
• Printing/Cutting width *: Maximum 18.89 in. (480 mm)
• Ink cartridges type / capacity: S-PG2 INK 220 ml or 500 ml cartridge
• Ink cartridge: Five colors (cyan, magenta, yellow, black, and white[×2])
• Printing resolution: Max 1440 dpi
• Cutting speed: 0.4 to 5.9 in/s (10 to 150 mm/s)
• Dimensions: 42.09 [W] × 30.99 [D] × 24.49 [H] in. (1,069 (W) × 787 (D) × 622 (H) mm)
• Included items: Power cord, Media holders, Replacement blade for separating knife, User's Manual,
Software (VersaWorks, Roland DG Connect), etc.
